AIP Supplement for Kingdom of Bahrain

Air Traffic Management Directorate

Aeronautical Information Management (AIM)

AIP SUP 02/21

Effective from 17 FEB 2021 to PERM

Published on 17 FEB 2021

STAND DOCKING PROCEDURE FOR MAIN APRON B AT BAHRAIN INTERNATIONAL AIRPORT

NR 02/21
OBBI AD

STATUS OF SUPPLEMENT ITEMS

VALID SUPPLEMENTS: 06/16, 07/16, 04/17, 10/17, 12/17, 13/17, 05/18, 01/19, 04/19, 11/19, 12/19, 14/19, 17/19, 21/19, 22/19, 01/20, 06/20 AND 01/21.

CANCELLED SUPPLEMENTS: NIL

NOTAM CANCELLED BY THIS SUPPLEMENT: NIL

VALIDITY: FROM 17 FEB 2021 / PERM

INTRODUCTION:
This supplement is to detail the functionality of the FMT APIS Azimuth Guidance System that is operationally is the newly opened Main Apron B stand 14 up to and including stand 22. All pilots are advised to pay close attention to the directions provided.


























1- FMT APIS Docking Process

StepProcess
1.1The following steps occur during the aircraft entry and docking process of the FMT APIS VDGS.

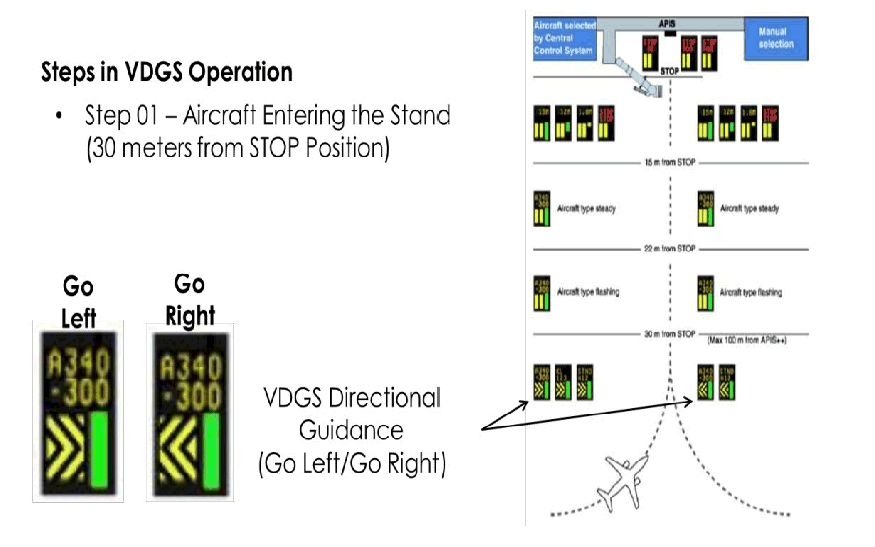

1.1.1

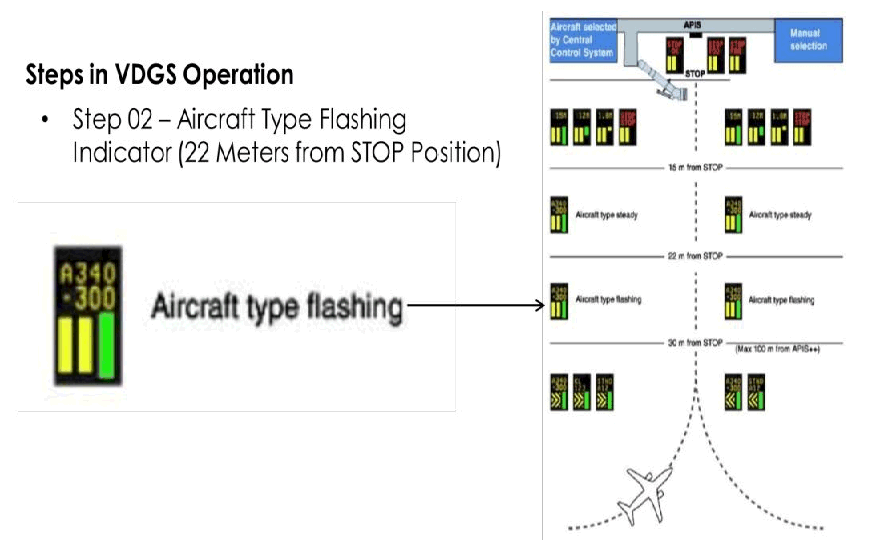

1.1.2

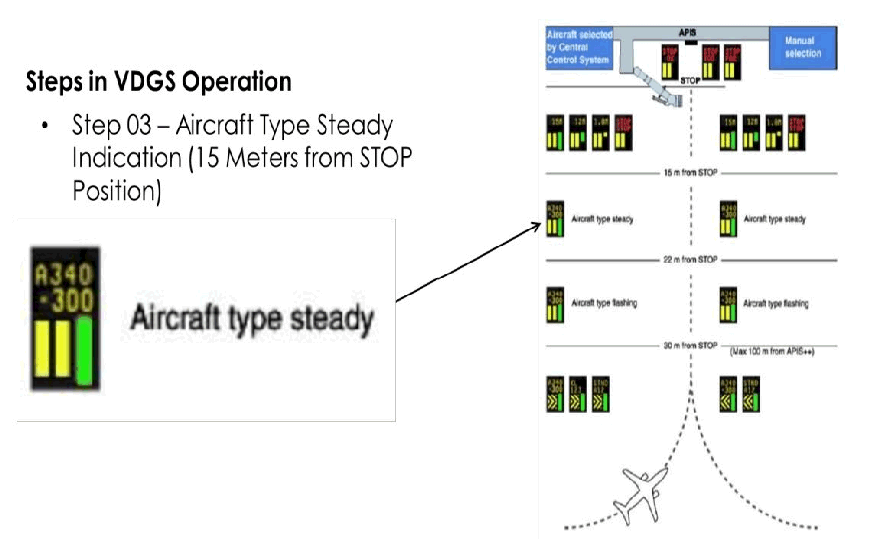

1.1.3

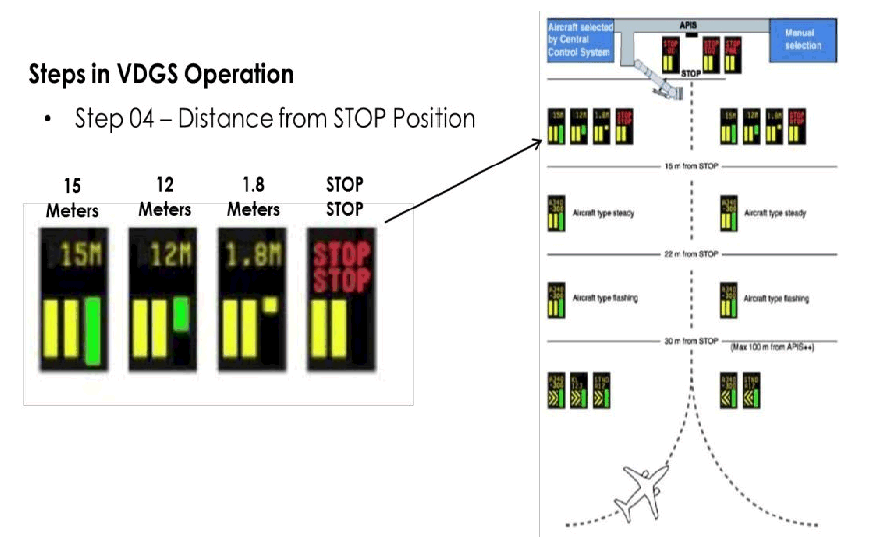

1.1.4

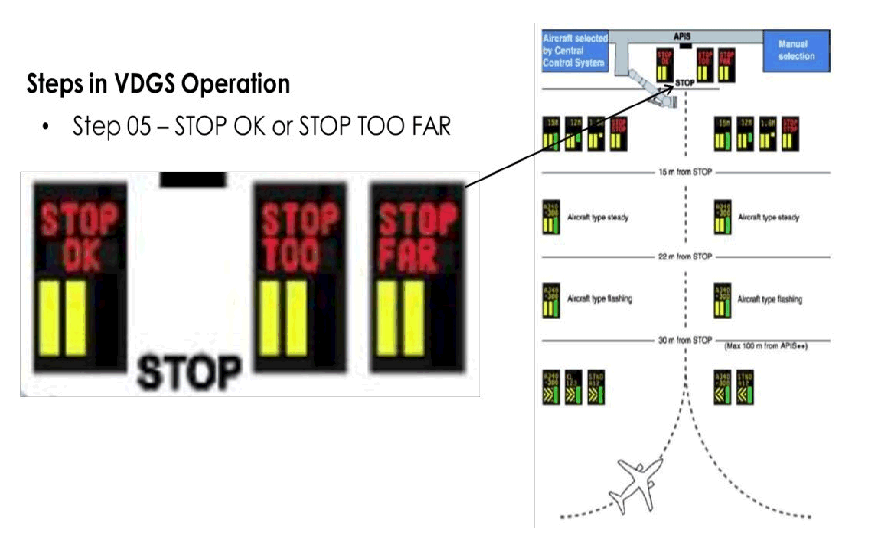

1.1.5

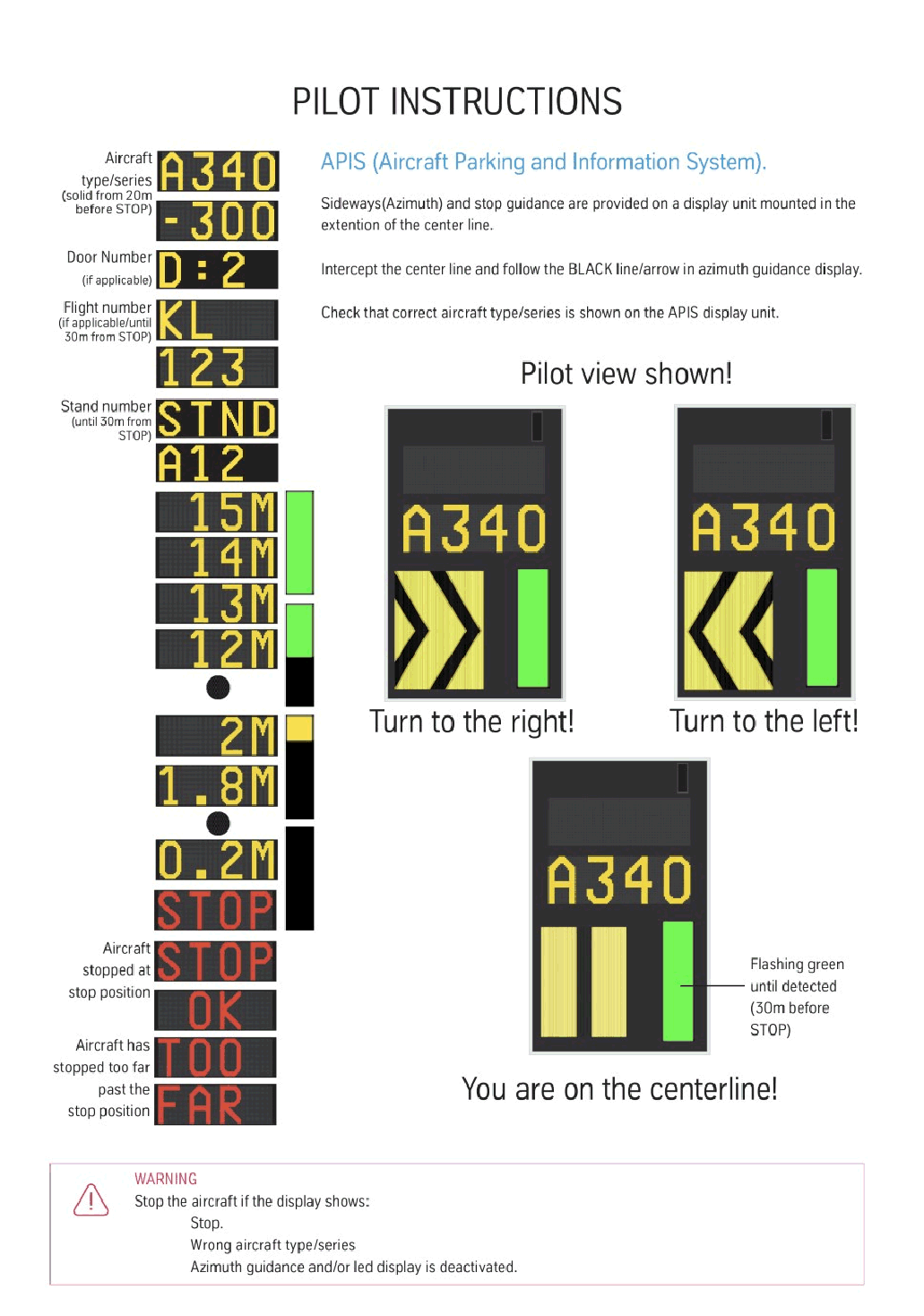

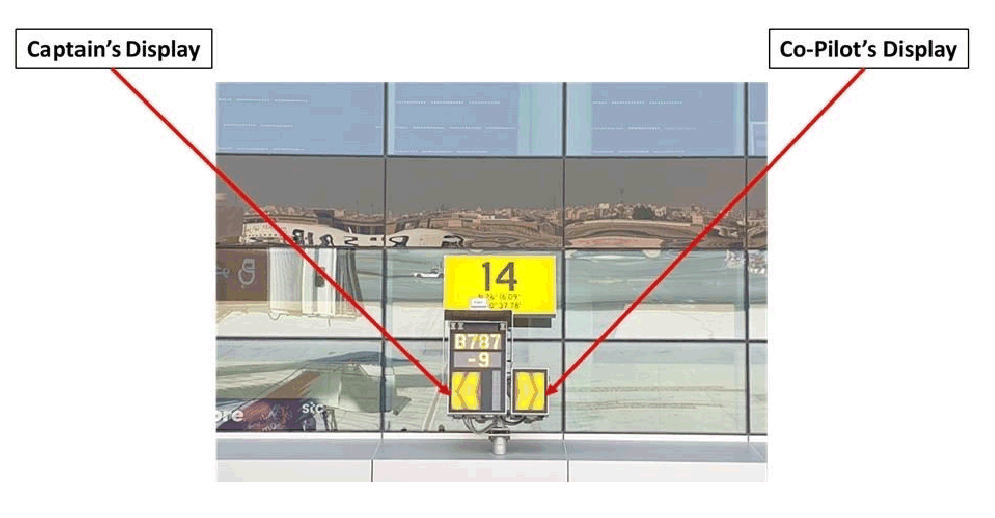

2- FMT APIS Azimuth Guidance – Cockpit View.
