AIP for Kingdom of Bahrain and State of Qatar (section AD-2.OBBI) valid from 22 APR 2021

AD 2 AERODROMES

OBBI — BAHRAIN INTERNATIONAL

OBBI AD 2.1 AERODROME LOCATION INDICATOR AND NAME

OBBI — BAHRAIN INTERNATIONAL

OBBI AD 2.2 AERODROME GEOGRAPHICAL AND ADMINISTRATIVE DATA

1	ARP coordinates and site at AD	261615N 0503801E Mid - point of RWY on CL
2	Direction and distance from (city)	3.3 NM NE of Manama
3	Elevation/Reference temperature	8 FT / 38° C
4	Geoid undulation at AD ELEV PSN	-83.18 FT
5	MAG VAR/Annual change	2.49° E ~~2°43' E~~ (2020~~2016~~) / 0°3' per year
6	AD operator, address, telephone, telefax, e-mail address, AFS and website address	Post: Undersecretary for Civil Aviation P.O. Box 586 Kingdom of Bahrain Tel:+973 17321100 Fax:+973 17339060 AFS:OBBIYAYX
7	Types of traffic permitted (IFR/VFR)	IFR/VFR
8	Remarks

OBBI AD 2.3 OPERATIONAL HOURS

1	AD Operator	SUN - THU 04:00 - 11:15
2	Customs and immigration	H24
3	Health and sanitation	H24
4	AIS Briefing Office	H24
5	ATS Reporting Office (ARO)	H24
6	MET Briefing Office	H24
7	ATS	H24
8	Fuelling	H24
9	Handling	H24
10	Security	H24
11	De-icing	NIL
12	Remarks	NIL

OBBI AD 2.4 HANDLING SERVICES AND FACILITIES

1	Cargo-handling facilities	BAHRAIN AIRPORT SERVICES
2	Fuel/oil types	Fuel: AVGAS 100 LL by prior arrangement with BAFCO (Bahrain Aviation Fuelling Company) TEL: +973 17329440 FAX: +973 17910925 Jet A1available to contract customers or on cash basis only Oil: Mobil oil Jet 2
3	Fuelling facilities/capacity	Jet A1 Bays C1 - C5 , E1 - E4 and 11 - 22; hydrant Bays 1 - 6 , 51 - 58, 61 - 63 and 71 - 75; Bowser AVGAS - Bowser only
4	De-icing facilities	NIL
5	Hangar space for visiting aircraft	NIL
6	Repair facilities for visiting aircraft	Gulf Air
7	Remarks	1. Handling Services available H24 from Bahrain Airport Services (BAS) 2. Private / Business Aircraft shall carry a tow bar compliant to its type of aircraft

OBBI AD 2.5 PASSENGER FACILITIES

1	Hotels	In Manama and at Airport
2	Restaurants	At Airport
3	Transportation	Taxis and courtesy coaches to Hotels
4	Medical facilities	First aid; Ambulance; Hospitals in Manama
5	Bank and Post Office	At airport; At airport
6	Tourist Office	At airport
7	Remarks	NIL

OBBI AD 2.6 RESCUE AND FIRE FIGHTING SERVICES

1	AD category for fire fighting	CAT 10
2	Rescue equipment	1 rescue boat available from airport and 4 from coastguard
3	Capability for removal of disabled aircraft	Limited
4	Remarks	Trained personal: 18 per shift; Fire vehicles: 3 vehicles, 2 with 13000 L of capacity each, 1 with 12000 L of capacity

OBBI AD 2.7 SEASONAL AVAILABILITY - CLEARING

1	Types of clearing equipment	NIL
2	Clearance priorities	NIL
3	Remarks	NIL

OBBI AD 2.8 APRONS, TAXIWAYS AND CHECK LOCATIONS/POSITIONS DATA

1	Apron designation, surface and strength	MAIN A ~~MAIN~~: Concrete, PCN 114 / R / C / W / T MAIN B: Concrete, PCN 86 / R / B /W /T MIDDLE: Concrete, PCN 112 / R / B / W / T EASTERN - 23 to 28: Concrete, PCN 89 / R / B / W / T EASTERN - 81 to 88: Asphalt, PCN 22 / F/ B / X / T WESTERN A: Concrete, PCN 119 / R / C / W / T WESTERN B: Concrete, PCN 88 / R / C / W / T EXECUTIVE: Concrete, PCN 120 / R / B / W / T CARGO: Concrete, PCN 120 / R / B / W / T NORTHERN: Asphalt, PCN 115 / F / A / W / T MENA : Concrete, PCN 24 / R / B / X / T
2	Taxiway designation, width, surface and strength	TWY A1: 28 M, Asphalt, PCN 120 / F / A / W / T TWY A2: 25.5 M, Asphalt, PCN 105 / F / A / W / T TWY A3: 30 M, Asphalt, PCN 89 / F / D / W / T TWY A4: 31.5 M, Asphalt, PCN 113 / F / A / W / T TWY A5: 30 M, Asphalt, PCN 113 / F / A / W / T TWY A6, 22 M, Asphalt, PCN 116 / F / C / W / T TWY A7, 23 M, Asphalt, PCN 107 / F / A / W / T TWY A8: 30 M, Asphalt, PCN 120 / F / A / W / T TWY A9: 29 M, Asphalt, PCN 120 / F / A / W / T TWY B1 - Code E: 23 M, Asphalt, PCN 37 / F / B / X / T TWY B1 - Code D: 23 M, Asphalt, PCN 22 / F / B / X / T TWY K: 26 M, Concrete, PCN 64 / R / B / W/ T TWY L: 26 M, Asphalt, PCN 75 / F / A / W / T A ( B/W K & L): 26M, Asphalt,PCN 112 / F / A / W / T TWY M: 34 M, Asphalt, PCN 118 / F / B / W / T TWY N: 34 M, Asphalt, PCN 103 / F /’ B / W / T A ( B/W M & N): 25M, Asphalt, PCN 112 / F / A /W / T TWY P: 33 M, Concrete, PCN 85 / R / B / W / T TWY Q: 49 M, Concrete, PCN 56 / R / C / W / T A ( B/W P & Q): 30M, Asphalt, PCN 112 / F / A / W / T TWY R: 49 M, Concrete, PCN 87 / R / B / W / T TWY S & T : 44 M, Asphalt, PCN 72~~120~~ / F / A / XW / T TWY T: 42 M, Asphalt, PCN 120 / F / A / W / T TWY U & V: 42 M, Asphalt, PCN 120 / F / A / W / T TWY V: 42 M, Asphalt, PCN 120 / F / A / W / T TWY B2, 30 M, Asphalt, PCN 113 / F / A / W / T TWY Z: 63 M, Asphalt PCN 72 / F / A / X / T
3	Altimeter checkpoint location and elevation	Bays 11 - 19: 8 FT Bays 42 - 46: 6 FT
4	VOR checkpoints	TBN
5	INS checkpoints	See ACFT Parking / Docking charts
6	Remarks	NIL

OBBI AD 2.9 SURFACE MOVEMENT GUIDANCE AND CONTROL SYSTEM AND MARKINGS

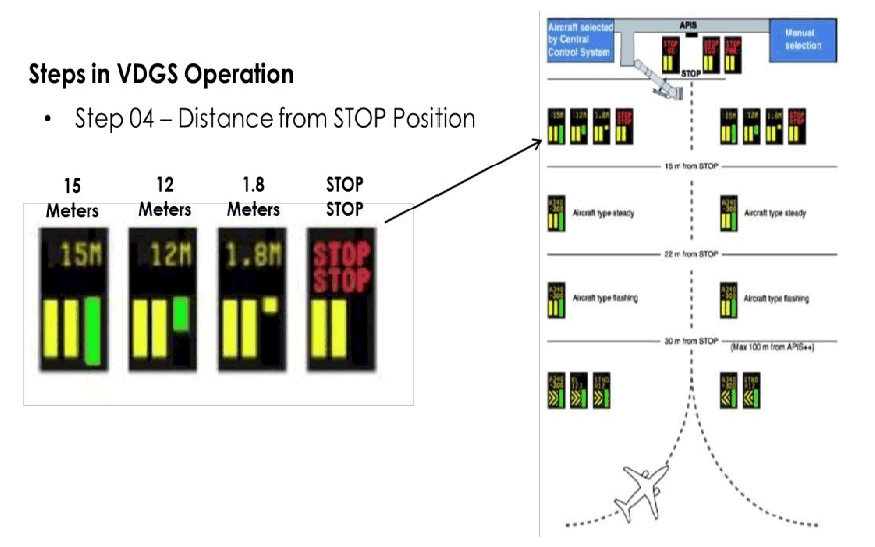

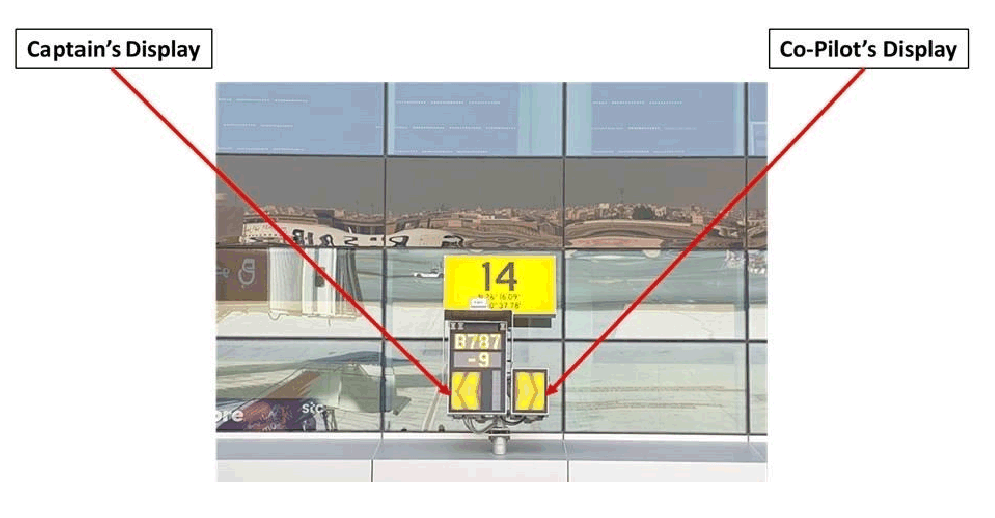

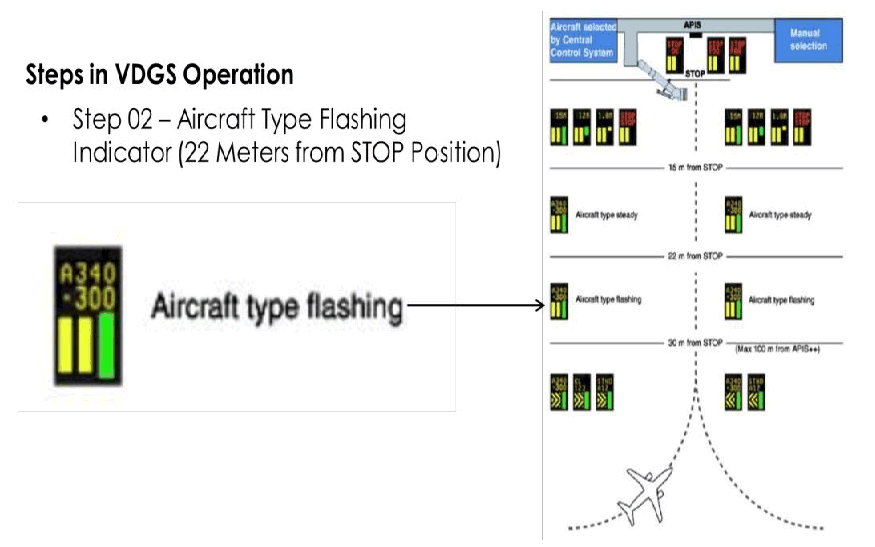

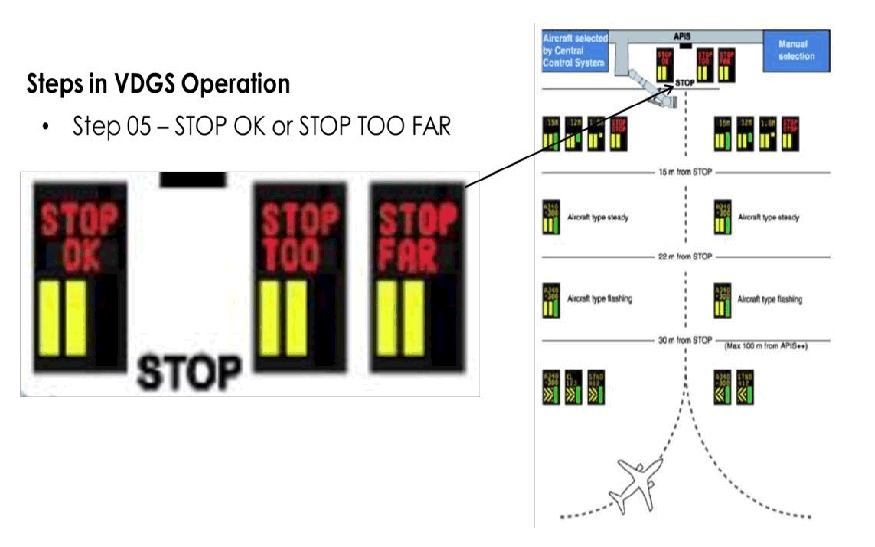

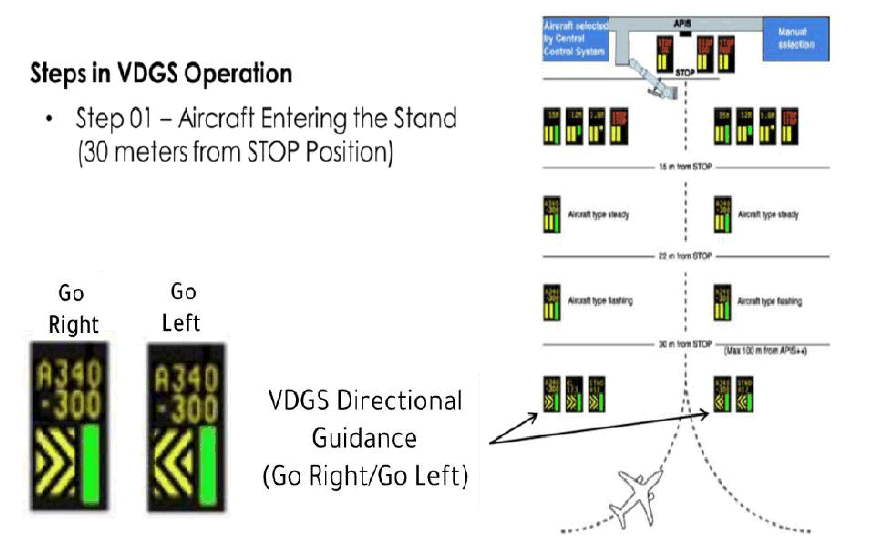

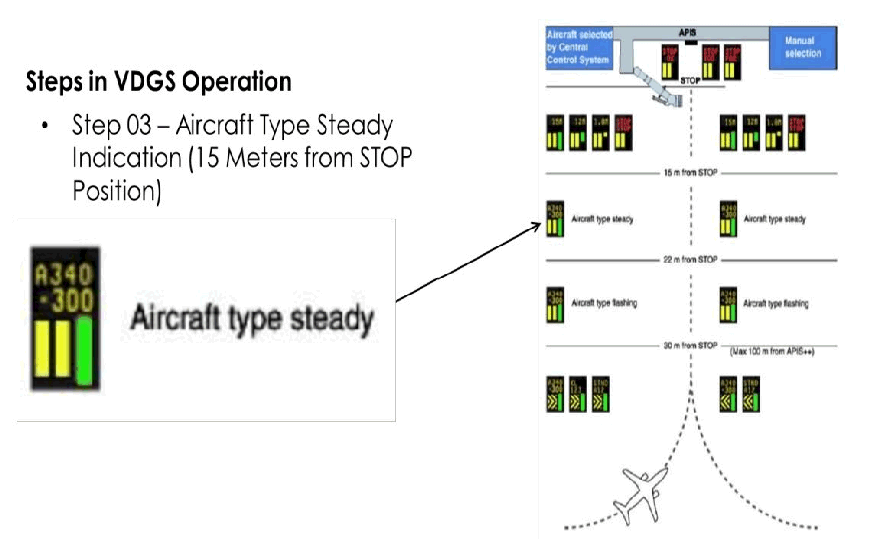

1	Use of aircraft stand ID signs, TWY guide lines and visual docking/parking guidance system of aircraft stands	Taxiing guidance signs at all intersections with TWY and RWY at all holding positions. Taxi guide lines at all aprons. ~~Visual Docking Guidance System (VDGS) installed on stands: MAIN APRON 11 - 20, MIDDLE APRON 1 - 6, CARGO APRON C1 - C5, EXECUTIVE APRON E1 - E4, EASTERN APRON 23 - 28 and 81 - 88.~~ SAFEGATE Visual Docking Guidance System(VDGS) installed on stands: MIDDLE APRON1 - 6, CARGO APRON C1 -C5, EXECUTIVE APRON E1 - E4, EASTERN APRON 23 - 28.FMT Aircraft Positioning and Information System(APIS) installed on stands: MAIN B 14 - 22.
2	RWY and TWY markings	RWY 12L / 30R: designation, THR, Displaced THR, TDZ, CL, Edges marked and lighted RWY 12R / 30L: designation, THR, Displaced THR, TDZ, CL, Edges marked and Displaced THR & Edges lighted TWY: CL, holding positions at all TWY/RWY intersections, marked and lighted (except TWY B2).
3	Stop bars	Where appropriate, manually controlled by TWR.
4	Remarks	See also Aerodrome Ground Movement Chart for taxiing guidance. Road Holding positions to RWY: Reflective signs are available.

OBBI AD 2.10 AERODROME OBSTACLES

In approach/TKOF areas				In circling area and at AD
1				2
Obstacle identification or designation	RWY NR/Area affected	Obstacle type Elevation Markings/LGT	Coordinates	Obstacle identification or designation	Obstacle type Elevation Markings/LGT	Coordinates
a	b	c	d	a	b	c
OB-1025	12L APCH	Lamppost 11.41 M, 37.43 FT NIL / NIL	261658.36N 0503658.50E	OB-1127	Comms Mast 41.29 M , 135.46 FT NIL / NIL	261704.32N 0503745.26E
OB-2273	12L APCH 12R TKOF	Building 16.27 M, 53.38 FT NIL / NIL	261654.76N 0503706.50E	OB-1146	ATC Dipole 53.56 M, 175.72 FT NIL / NIL	261600.98N 0503751.70E
OB-1234	12L TKOF	ILS FFM 7.86 M, 25.79 FT NIL / NIL	261534.71N 0503910.92E	OB-1209	Comms Mast 40.85 M , 134.02 FT NIL / NIL	261626.78N 0503856.76E
OB-2130	12L TKOF	Lamppost 12.46 M, 40.88 FT NIL / NIL	261535.00N 0503920.39E	OB-1213	Comms Mast 36.48 M, 119.68 FT NIL / NIL	261523.53N 0503857.43E
OB-1104	12L	Lamppost 12.92 M, 42.39 FT NIL / NIL	261654.60N 0503705.60E	OB-1295	Comms Mast 56.15 M , 184.22 FT NIL / NIL	261605.12N 0503649.33E
OB-1105	12L	Lamppost 12.33 M, 40.45 FT NIL / NIL	261652.95N 0503708.24E	OB-1321	Power Stn Chimney 68.21 M, 223.78 FT NIL / NIL	261306.68N 0503932.70E
OB-1106	12L	Lamppost 12.40 M, 40.68 FT NIL / NIL	261652.55N 0503709.23E	OB-2011	Water Tower 46.32 M 151.97 FT NIL / NIL	261650.15N 0503833.33E
OB-1107	12L	Lamppost 12.32 M, 40.42FT NIL / NIL	261652.24N 0503710.26E	OB-2024	Comms Mast 39.99 M, 131.2 FT NIL / NIL	261611.61N 0503915.02E
OB-1109	12L	Lamppost 12.20 M, 40.03FT NIL / NIL	261652.06N 0503711.30E	OB-2072	Building 77.30 M, 253.61 FT NIL / NIL	261725.96N 0503954.66E
OB-1115	12L	Tree 7.50 m, 24.61 FT NIL / NIL	261650.53N 0503711.82E	OB-2078	Crane (T) 95.81 M, 314.33 FT NIL / NIL	261704.89N 0503951.69E
OB-2269	12L	Building 18.62 M, 61.09 FT NIL / NIL	261657.46N 0503704.07E	OB-2165	Crane (T) 191.90 M, 629.59 FT NIL / NIL	261326.11N 0503633.69E
OB-2270	12L	Building 18.65 M, 61.19 FT NIL / NIL	261657.24N 0503704.26E	OB-2166	Crane (T) 201.55 M, 661.25 FT NIL / NIL	261324.31N 0503632.51E
OB-2272	12L	Building 17.59 M, 57.71 FT NIL / NIL	261655.33N 0503707.41E	OB-2233	Building 82.29 M, 269.98 FT NIL / NIL	261445.33N 0503606.04E
OB-5115	12L	Mobile Obstacle 6.47 M, 21.23 FT NIL / NIL	261651.07N 0503710.26E	OB-2235	Crane (T) 252.40 M, 828.07 FT NIL / NIL	261427.54N 0503421.34E
OB-5116	12L	Mobile Obstacle 6.38 M, 20.93 FT NIL / NIL	261650.35N 0503711.51E	OB-2240	Financial Harbour Building 266.57 M, 874.56 FT NIL / NIL	261415.86N 0503421.56E
OB-1018	30R TKOF	Lamppost 11.57 M, 37.96 FT NIL / NIL	261659.85N 0503651.62E	OB-2241	Financial Harbour Building 266.74 M, 875.12 FT NIL / NIL	261415.89N 0503427.61E
OB-1048	30R TKOF	Lamppost 11.52 M, 37.79 FT NIL / NIL	261653.00N 0503646.81E	OB-2242	WTC Building 246.81 M, 809.73 FT NIL / NIL	261422.26N 0503453.85E
OB-1197	30R	DVOR Monitor 8.584 M, 28.15 FT NIL / NIL	261531.38N 0503916.68E	OB-2243	WTC Building 247.07 M, 810.59 FT NIL / NIL	261421.81N 0503453.14E
OB-1247	12R TKOF	Tree 10.46 M, 34.32 FT NIL / NIL	261527.67N 0503916.88E	OB-2249	Building Antenna 206.60 M, 677.81 FT NIL / NIL	261346.40N 0503331.13E
OB-1248	12R TKOF	Tree 9.62 M, 31.56 FT NIL / NIL	261527.23N 0503916.61E	OB-2250	Building Antenna 206.51 M, 677.52 FT NIL / NIL	261350.69N 0503331.27E
OB-1272	12R TKOF	Lamppost 8.19 M, 26.87 FT NIL / NIL	261523.70N 0503909.89E	OB-2261	Building Antenna 213.23 M, 699.56 FT NIL / NIL	261412.06N 0503259.14E
OB-2121	12R TKOF	Lamppost 16.64 M, 54.59 FT NIL / NIL	261516.53N 0503924.54E	OB-2299	Flag Pole 52.35 M, 171.75 FT NIL / NIL	261556.95N 0503545.28E
OB-2122	12R TKOF	Lamppost 16.58 M, 54.4 FT NIL / NIL	261516.95N 0503922.10E	OB-2309	Building 52.09 M, 170.9FT NIL / NIL	261547.74N 0503545.31E
OB-2144	12R TKOF	Lamppost 11.72 M, 38.45 FT NIL / NIL	261526.28N 0503920.36E
OB-2145	12R TKOF	Lamppost 11.86 M, 38.91FT NIL / NIL	261525.34N 0503920.08E
OB-5206	12R TKOF	Mobile Obstacle 6.45 M, 21.16 FT NIL / NIL	261530.03N 0503913.81E
OB-5761	12R TKOF	Mobile Obstacle 6.27 M, 20.57 FT NIL / NIL	261526.99N 0503905.27E
OB-1093	30L TKOF	Apron Light 23.14 M, 75.92 FT NIL / NIL	261633.28N 0503707.18E
OB-1094	30L	Apron Light 23.19 M, 76.08 FT NIL / NIL	261634.49N 0503708.04E
OB-1095	30L TKOF	Apron Light 15.14 M, 49.67 FT NIL / NIL	261635.67N 0503708.88E
OB-1213	30L	Comms Mast 36.48 M, 119.68 FT NIL / NIL	261523.53N 0503857.43E
OB-5760	30L	Mobile Obstacle 6.21 M, 20.37 FT NIL / NIL	261530.23N 0503859.66E

OBBI AD 2.11 METEOROLOGICAL INFORMATION PROVIDED

1	Associated MET Office	BAHRAIN MET. See also GEN 3.5.1.4
2	Hours of service MET Office outside hours	H24. See also GEN 3.5.1.4 NIL
3	Office responsible for TAF preparation Periods of validity	BAHRAIN MET HR 30
4	Trend forecast Interval of issuance	Trend 1/2 HR
5	Briefing/consultation provided	Personal consultation, partial self briefing, telephone to Forecaster. See also GEN 3.5.1.5
6	Flight documentation Language(s) used	Charts, abbreviated plain language text English
7	Charts and other information available for briefing or consultation	S, U25, P25 (other levels on request), T, SWH (East & West), SWM (MID), TB (Gulf sector winds). See also GEN 3.5.1.5
8	Supplementary equipment available for providing information	Telefax, Self briefing terminal. See also GEN 3.5.1.5
9	ATS units provided with information	BAHRAIN TWR, APC, ACC, RCC
10	Additional information (limitation of service, etc.)	See GEN 3.5.1

OBBI AD 2.12 RUNWAY PHYSICAL CHARACTERISTICS

Designations RWY NR	TRUE & MAG BRG	Dimensions of RWY(M)	Strength (PCN) and surface of RWY and SWY	THR coordinates RWY end coordinates THR geoid undulation	THR elevation and highest elevation of TDZ of precision APP RWY
1	2	3	4	5	6
12L	123° / 120°	3964 x 60	108 / F / A / W / T Asphalt between landing THRs 120 / R / B / W / T Concrete first 307 M	Landing THR: 261644.34N 0503710.28E THR end: 261649.67N 0503701.03E -90.38 FT	7.55 FT 8.63 FT
30R	303° / 300°	3964 x 60	108 / F / A / W / T Asphalt between landing THRs 113 / R / B / W / T Concrete first 307 M	Landing THR: 261545.62N 0503852.03E THR end: 261540.28N 0503901.28E -90.38 FT	7.35 FT 7.35 FT
12R	123° / 120°	2530 x 45	113 / F / A / W / T Asphalt	Landing THR: 261610.74N 0503755.62E THR end: 261616.13N 0503746.29E -90.38 FT	8.04 FT 8.04 FT
30L	303° / 300°	2530 x 45	113 / F / A / W / T Asphalt	Landing THR: 261533.91N 0503859.44E THR end: 261531.79N 0503903.10E -90.38 FT	6.76 FT6.46 FT
Note: RWY 12R / 30L is not an active Runway. In exceptional circumstances, ATC may assign RWY 12R / 30L provided that the procedures are in place and Runway 12L / 30R is deactivated. Approaches to land or take off on RWY 12R / 30L shall not be planned without specific authorization from BCAA. Note: RWY 12R / 30L is approved as a backup RWY. Approaches to land or take off shall not be planned. RWY 12R / 30Lwill be assigned by ATC in exeptional circumstances.

Slope of RWY-SWY			SWY dimensions (M)	CWY dimensions (M)	Strip dimensions (M)	OFZ	Remarks
7			8	9	10	11	12
12L	0.0%	NIL	NIL	NIL	4084 x 300	Yes	Non load bearing shoulders 8 M; RWY is liable to be slippery when wet
30R	0.0%	NIL	NIL	NIL	4084 x 300	Yes	Non load bearing shoulders 8 M; RWY is liable to be slippery when wet
12R	0.0%	NIL	NIL	60 x 150	2650 x 150	No	Non load bearing shoulders 7.5 M
30L	0.0%	NIL	NIL	600 x 150	2650 x 150	No	Non load bearing shoulders 7.5 M
Note: Standard RESA 240 M available for RWY 12L and 30R

OBBI AD 2.13 DECLARED DISTANCES

RWY Designator	TORA (M)	TODA (M)	ASDA (M)	LDA (M)	Remarks
1	2	3	4	5	6
12L	3964	3964	3964	3657	NIL
30R	3964	3964	3964	3657	NIL
12R	2530	2590	2530	2222	NIL
30L	2530	3130	2530	2410	NIL

OBBI AD 2.14 APPROACH AND RUNWAY LIGHTING

RWY Designator	APCH LGT type LEN INTST	THR LGT colour WBAR	VASIS (MEHT) PAPI	TDZ, LGT LEN	RWY Centre Line LGT Length, spacing, colour, INTST	RWY edge LGT LEN, spacing, colour INTST	RWY End LGT colour WBAR	SWY LGT LEN (M) colour	Remarks
1	2	3	4	5	6	7	8	9	10
12L	ICAO CAT II precision approach lighting system 900 M LIH	Green	PAPI LEFT 3° 67.15FT	900 M	White LIH 3964 M; 30 M white; 3000 M - 3600 M red / white; from 3600 M red LIH	White LIH 3964 M; 60 M; last 600 M yellow	Red	NIL	NIL
30R	ICAO CAT II precision approach lighting system 900 M LIH	Green	PAPI LEFT 3° 67.15 FT	900 M	White LIH 3964 M; 30 M white; 3000 M - 3600 M red / white; from 3600 M red LIH	White LIH 3964 M; 60 M; last 600 M yellow	Red	NIL	NIL
12R	Simple approach lighting system (for non-instrument RWY) 420 M	Green	PAPI LEFT 3° 70.4 FT	NIL	NIL	White LIH 2530 M; 60 M; last 600 M yellow	Red	NIL	NIL
30L	Simple approach lighting system (for non-instrument RWY) 420 M	Green	PAPI LEFT 3° 70.4 FT	NIL	NIL	WHITE LIH 2530 M; 60 M; last 600 M yellow	Red	NIL	NIL
Note: RWY incursion lights (wig wag) installed at all TWY / RWY intersections 2.6 M from TWY edge. Height 65 CM..

OBBI AD 2.15 OTHER LIGHTING, SECONDARY POWER SUPPLY

1	ABN/IBN location, characteristics and operational hours	NIL
2	LDI location and LGT Anemometer location and LGT	NIL 350 M WSW of THR 30R; lighted
3	TWY lighting	Green CL , Runway intersections
4	Secondary power supply/switch-over time	- SECONDARY POWER SUPPLY TO ALL AD LIGHTING : 5 SECONDS. - DURING CAT II OPERATION, STANDBY GENERATOR SWITCH-OVER TIME 1 SECOND
5	Remarks	Apron: Blue Apron edge, TWY " B1 " is a solar powered blue edge light.

OBBI AD 2.16 HELICOPTER LANDING AREA

1	Coordinates TLOF or THR of FATO Geoid undulation	NIL
2	TLOF and/or FATO elevation M/FT	NIL
3	TLOF and FATO area dimensions, surface, strength, marking	NIL
4	True BRG of FATO	NIL
5	Declared distance available	NIL
6	APP and FATO lighting	NIL
7	Remarks	As directed by ATC

OBBI AD 2.17 ATS AIRSPACE

1	Designation and lateral limits	BAHRAIN CTR: A Circle, radius 10 NM centered at BAH ARP (261615N 0503801E).
2	Vertical limits	SFC - 2500 FT
3	Airspace classification	D
4	ATS unit call sign Language(s)	BAHRAIN TOWER English
5	Transition altitude	13000FT
6	Hours of applicability	H24
7	Remarks	New ATC Control Tower at 261601.3N 0503751.5E top elevation 53 M (174 FT) AMSL located aprox DIST / MAG BRG at 210 ° / 500 M (0.3 NM) from ARP, penetrates Obstacle Limitation Surfaces

OBBI AD 2.18 ATS COMMUNICATION FACILITIES

Service designation	Call sign	Channel	Hours of operation	Remarks
1	2	3	4	5
APP / TAR	BAHRAIN APPROACH	127.85 MHZ	H24
		234.95 MHZ	H24	Alternate Frequency
TWR	BAHRAIN TOWER	118.5 MHZ	H24
		296.025 MHZ	H24	Alternate Frequency
SMC	BAHRAIN GROUND	121.85 MHZ	H24
A/G	BAHRAIN RADIO	2992 KHZ	H24
		5658 KHZ	H24
		5667 KHZ	H24
		8918 KHZ	H24
		13288 KHZ	H24
		13312 KHZ	H24
D - ATIS	BAHRAIN INFORMATION	127.2 MHZ	H24
VOLMET	BAHRAIN VOLMET	128.8MHZ	H24
DLV	BAHRAIN DELIVERY	121.90MHZ	H24

OBBI AD 2.19 RADIO NAVIGATION AND LANDING AIDS

Type of aid, MAG VAR, CAT of ILS/MLS (For VOR/ILS/MLS, give declination)	ID	Frequency	Hours of operation	Position of transmitting antenna coordinates	Elevation of DME transmitting antenna	Remarks
1	2	3	4	5	6	7
DVOR (2.49°~~2°43'~~ / 2020~~2016~~)	BHR	111.80 MHZ	H24	261530.00N 0503919.18E	36.82 FT	120° MAG .48NM From THR RWY 30R
DME	BHR	CH 55 X	H24	261530.41N 0503919.53E	32.83 FT	Co-located with DVOR.
ILS LOC RWY 12L CAT II ~~(2°43' / 2016)~~ (2.49° / 2020)	IBIB	111.5 MHZ	H24	261534.17N 0503911.85E	15.86 FT	NIL
GP RWY 12L		332.9 MHZ	H24	261642.07N 0503722.58E	52.97 FT	Angle 3°, RDH 55 FT
ILS DME RWY 12L	IBIB	CH 52 X	H24	261641.92N 0503722.47E	42 FT	Co - located with GP
ILS LOC RWY 30R CAT II ~~(2°43' / 2016)~~ (2.49° / 2020)	IBIA	110.3 MHZ	H24	261656.27N 0503650.00E	22.14 FT	300° MAG 2.18 NM from THR RWY 30R
GP RWY 30R		335 MHZ	H24	261555.16N 0503844.83E	53.136 FT	Angle 3°, RDH 55 FT
ILS DME RWY 30R	IBIA	CH 40 X	H24	261555.16N 0503844.83E	42 FT	Co - located with GP

OBBI AD 2.20 LOCAL aerodrome REGULATIONS

(i) Operations on the Eastern Apron

(1) Stands 23 - 28

Following are the source of ground power available and shall be provided accordingly:

FEGP when serviceable
GPU - when FEGP is not serviceable
No APU is to be left running unless either a qualified person is in attendance or the APU has both an auto-shut

(ii) Operation on TWY (B1)

TWY (B1) is a viable for night operations subject to the following conditions:-

No centre line lights are provided other than the existing CAT-EYE reflectors.
Lights are provided.
No LEAD ON/LEAD off lights are provided.
STOP-BAR, at present, is illuminated continuously, where contrast and ON / OFF functionality still remains uncontrollable by ADC day and night.
Clearance to cross the STOP-BAR shall only be issued by ADC when deemed necessary in order for ACFT to proceed day and night.
FOLLOW-ME vehicle will be provided for all ACFT entering TWY (B1) down to the engine-shut down markings day and night.
FOLLOW-ME vehicle will be provided for all ACFT leaving TWY (B1) from the engine-start markings up to the stop-bar only. Pilot shall then request an individual clearance from ADC to cross the stop-bar fro progressive taxiing day and night.

{iii} Single Engine Taxi

ICAO resolution A37-19 emphasizes the importance of the International Civil Aviation to limit or reduce the Carbon Dioxide emissions from aircraft within a state boundary. For this reason Bahrain has adopted a procedure which will help in reducing the emission of CO2 from aircraft and allow for airline fuel conservation. Single Engine Taxi Operations may be exercised by multi--engine aircraft provided the following conditions are met:

The Pilots should be familiar with Bahrain International Airport in terms of aerodrome layout.
Pilots executing Single Engine Taxi Operation, should comply to ATC instructions as may be issued during taxiing without any delay.

In addition to the above, Single Engine Taxi Operations shall NOT be used if one of the following cases prevails:

If taxi or parking will involve a turn of 180 degrees or more.
The aircraft is on the active RWY or requesting to cross the RWY.

{iv} Stop Bars Holding

Aircraft or vehicles shall not cross a runway holding point until they have received verbal clearance from ATC and the STOP BAR has been extinguished.

STOP BARS shall not be crossed without specific ATC clearance as follows. Unable to turn STOP BARS off. Cross Red STOP BAR.

{v} Transponder Setting

All Transponder equipped aircraft shall select transponder to standby or off, when fully parked on the stand or gate.

OBBI AD 2.21 NOISE ABATEMENT PROCEDURES

NOISE ABATEMENT PROCEDURES - BAHRAIN

Circuit directions at BAHRAIN INTERNATIONAL airport are:

R WY 30L/ 30R: right hand;

RWY 12L / 12R: left hand.
Departing and arriving flights are not permitted to operate within the eighty - degree arc subtended by the 180° and 260° Radials of the BHR DVOR, and containing the main Bahrain Islands. Exceptionally , flights which the Controlling Authority has deemed operationally essential may be permitted to operate within this arc, provided they can remain either visually clear of the land, or be vectored clear by BAHRAIN APPROACH.
Usage of reverse thrust:

Usage of reverse thrust more than idle is not permitted during landing between the hours of 2100 and 0300, unless an aircraft is in an emergency and has been cleared to use the reverse thrust by the ATC.
Engine Run Ups at BAHRAIN INTERNATIONAL airport

Between the hours of 2100 and 0300, testing of aircraft engines is permissible at ground idle power only. Settings above this, however brief, are not allowed.

OBBI AD 2.22 FLIGHT PROCEDURES

Low Visibility Procedures Applicable to ILS CAT II operations at Bahrain International Airport

2.22.1. Authorization

All Air operators may conduct Low Visibility Operations (take-off, CAT II approaches and landings) if they are legally authorized-approved by their own aeronautical authority of the state of registration. Aerodrome Information concerning surface wind and RVR is immediately provided by ATC and significant changes will be reported in accordance with the provisions of PANS - ATM (DOC 4444). LVP operations for arrivals and departures are limited to the main runway at Bahrain International Airport:

RWY 30R ILS CAT II

RWY 12L ILS CAT II

Any changes in the operational status or the facilities will be promulgated by NOTAM and/or pilots will be advised accordingly by ATIS or on initial contact with ATC.

2.22.1.1 Low Visibility Procedures (LVP)

Low Visibility Procedures (LVP) shall be declared at Bahrain International Airport whenever the RVR reading is 1000M or less, or whenever conditions are such that all of the maneuvering area is not visible from the control tower. The procedures will ensure protection of the ILS sensitive and critical areas to ILS CAT II limits, provide an effective surface movement guidance and control system, and ensure a safe CAT II operations environment. LVP procedures will not normally be introduced for aircraft carrying out practice CAT II approaches.

2.22.1.2 Aerodrome Operating Minima

A- Arrival RWY 12L / 30R LVP Minima

-Runway 30R, Refer to AIP chart IAC -ICAO RWY 30R VOR DME ILS CAT A-D

-Runway 12L, Refer to AIP chart AD 2-OBBI-51

-LVP shall be in force

-No aircraft shall be permitted to make an approach to land when the RVR is less than 350 meters.

B- Departure RWY 12L / 30R LVP Minima

-LVP shall be in force -No aircraft departure is permitted when the RVR is less than 350 meters.

2.22.1.3 Runway Utilization

To ensure the maximum runway utilization during LVP operations, the runway shall not be used as a taxi/towing route except for aircraft required to exit the runway. The runway shall not be used to cross from taxiways B1 and B2; pilots are expected to comply with the following operational procedures:

A- Departures

RWY 30R

RWY holding position H shall be used for departure. Intersection departures are not authorized during LVP.
On receipt of take-off clearance, pilots should ensure that they are able to commence take-off without delay.
Strict adherence to ATC taxi instructions is required, refer to the AIP (LVP DEP Taxi route RWY 12L - 30R AD 2-OBBI-87).
Notify ATC immediately of any noncompliance to the above requirements

RWY 12L

RWY holding position A1 shall be used for departure traffic. Intersection departures are not authorized during LVP.
On receipt of take-off clearance, pilots should ensure that they are able to commence take-off without delay.
Strict adherence to ATC taxi instructions is required, refer to the AIP (LVP DEP Taxi route RWY 12L - 30R AD 2-OBBI-87).
Notify ATC immediately of any noncompliance to the above requirements.

B- Arrivals

RWY 30R

Arriving aircraft may exit the RWY to the south at TWY A4 or beyond or,
Arriving aircraft may exit the RWY to the north at TWY B1 or TWY B2.
Strict adherence to ATC taxi instruction is required, refer to the AIP (LVP ARR Taxi route RWY 12L - 30R LOW VISIBILITY PROCEDURE - ARR RWY 12L - 30R).
Report RWY vacated and taxi speed to ATC.

RWY 12L

Arriving aircraft may exit the RWY to the south at TWY A5 or beyond or,
Arriving aircraft may exit the RWY to the north at TWY B1 or TWY B2
Strict adherence to ATC taxi instruction is required, refer to the (LVP ARR Taxi route RWY 12L - 30R AD 2-OBBI-89).
Report RWY vacated and/or taxi speed to ATC.

2.22.1.4 Ground Movement Operations Transponder procedures

Advanced Surface Movement Guidance and Control System (ASMGCS) using Mode-S Multi-lateration had been commissioned at Bahrain International Airport. Aircraft Taxi and Transponder Operating Procedures on the movement area are listed below:

A- Departures

While on the apron including pushback operations:

Enter the discrete SSR code received from Clearance Delivery/TWR.
Enter the three letter ICAO designator followed by the flight number (e.g.GFA123) through the FMS or the Transponder.
ATC will verify the data and use it for identification.

B- Arrivals

Landing aircraft to maintain their transponder switched - On until they are fully parked on the stand.

2.22.2 RNAV GNSS APPROACH

GNSS approach is part of the GPS service and is established at Bahrain, therefore, acquisition of such service could only be done by means of flying towards a number of way points which are prevailed along the approach phases within BAHRAIN TMA after which it will guide an aircraft to the final approach of the landing RWY, such procedure may only be flown using significant position co - ordinates that are stored in the aircraft‘s navigational data base.

a) Path Terminators RUNWAY 12L

#	ID	Latitude	Longitude	P/T	Fly-Over	Course ( ° T )	VPA	Altitude ( ft )	Dist ( nm )	speed limit ( kts )
010	OB1N3	262712.8781N	0503044.3194E	IF	N			+2500
020	BI502	262122.55N	0502907.28E	TF	N	194.01		+1400	6	-210

010	LOVAL	262406.31N	0502422.32E	IF	N			+2500
020	BI502	262122.55N	0502907.28E	TF	N	122.52		+1400	5.06	-210

010	BI502	262122.55N	0502907.28E	IF	N			+1400
020	BI501	261909.61N	0503258.24E	TF	N	122.56		+1400	4.1
030	RW12L (MAPt)	261644.33N	0503710.28E	TF	Y	122.58	-2.8	@58	4.8
040				VM		122.62		@2500

b) Path Terminators RUNWAY 30R

#	ID	Latitude	Longitude	P/T	Fly-Over	Course ( ° T )	VPA	Altitude ( ft )	Dist (nm)	Speed limit (kts)
1	OB3N1	261454.5833N	0505204.7346E	IF	N			+2500
2	BI602	261106.96N	0504654.00E	TF	N	230.94		+1400	6	-210

3	DAXEL	260822.45N	0505137.90E	IF	N			+2500
4	BI602	261106.96N	0504654.00E	TF	N	302.72		+1400	5.06	-210

5	BI602	261106.96N	0504654.00E	IF	N			+1400
6	BI601	261320.28N	0504303.57E	TF	N	302.69		+1400	4.1
7	RW30R (MAPt)	261545.62N	0503852.03E	TF	Y	302.66	-2.8	@57	4.48
8				VM		302.66		@2500

c) Path Terminators Runway 12R

#	ID	Latitude	Longitude	P/T	Fly-Over	Course ( ° T )	VPA	Altitude ( ft )	Dist ( nm )	speed limit ( kts )
010	OB1N3	262712.8781N	0503044.3194E	IF	N			+2500
020	BI502	262122.55N	0502907.28E	TF	N	194.01		+1400	6	-210

010	LOVAL	262406.31N	0502422.32E	IF	N			+2500
020	BI502	262122.55N	0502907.28E	TF	N	122.52		+1400	5.06	-210

010	BI502	262122.55N	0502907.28E	IF	N			+1400
020	OB2F1	261836.62N	0503342.52E	TF	N	123.77		+1400	4.96
030	RW12R	261610.74N	0503755.62E	TF	Y	122.58	-2.8	@58	4.5
040				VM		122.62		@2500

d) Path Terminators RWY 30L

#	ID	Latitude	Longitude	P/T	Fly-Over	Course ( ° T )	Altitude ( ft )	Dist (nm)	Speed limit (kts)
010	OB3N1	261454.5833N	0505204.7346E	IF	N		+2500
020	BI602	261106.96N	0504654.00E	TF	N	230.94	+1400	6	-210

010	DAXEL	260822.45N	0505137.90E	IF	N		+2500
020	BI602	261106.96N	0504654.00E	TF	N	302.72	+1400	5.06	-210

010	BI602	261106.96N	0504654.00E	IF	N		+1400
020	OB3F1	261305.83N	0504316.03E	TF	N	301.17	+1400	3.82
030	RW30L	261533.91N	0503859.44E	TF	Y	302.63	@57	4.5
040				VM		302.63	@2500

2.22.3 RVR RESTRICTIONS

No landing and take off will be allowed at BAHRAIN INTERNATIONAL airport if the reported RVR reading is 350 M or less.

OBBI AD 2.23 ADDITIONAL INFORMATION

2.23.1 Minimization of time of the RUNWAY

A number of recent incidents have led to a reduction in the minimum requirement for runway separation between arriving and departing aircraft. The factors causing these incidents have been found to be:

Arriving aircraft delay to vacate the runway after landing and / or stop before the entire aircraft has vacated the runway.
Departing aircraft, having reported “ready” and been cleared for takeoff, delay on the runway before commencing takeoff roll.

Factors ATC considers:

IFR separation on final approach course may reduce to 3NM. This reduced separation minima enhances airspace efficiency and runway utilization.
For the purposes of issuing a takeoff or landing clearance to subsequent aircraft, a preceding aircraft is not considered to be clear of the runway until the arriving aircraft is completely clear of the runway or the departing is airborne.
in the order to achieve the maximum runway utilization, it is essential that landing aircraft vacate the runway without delay; and that the departing aircraft, once cleared for takeoff, commence takeoff roll without delay.
in the event of arriving or departing aircraft delaying on the runway, it may become necessary for the subsequent departing aircraft’s takeoff clearance to be delayed; or for the subsequent arriving aircraft to be instructed to go around. Incidents of this nature have serious safety implication for all operators.

Pilots are, therefore, reminded of their responsibilities.

Arriving Aircraft

Plan their runway exit point prior to landing, it is preferred that aircraft landing Runway 12L vacate via taxiway A6, A7 or before; and that aircraft landing Runway 30R vacate via taxiway ’A4’ or before. Advise ATC as soon as practicable if unable to exit the runway as instructed.
Do not stop or reduce speed to less than required taxi speed prior to vacating the Runway completely.
Vacate the Runway expeditiously.

Departing Aircraft

Report “ready” only when ready for immediate takeoff.
Once cleared for takeoff, commence takeoff roll with minimum delay.
All departing aircraft contact BAHRAIN DELIVERY on 121.900 MHZ for IFR enroute clearance or VFR departure instructions.

Visual Docking Guidance System (FMT – APIS)

1-FMT APIS Docking Process

Step	Process
1.1	The following steps occur during the aircraft entry and docking process of the FMT APIS VDGS.
1.1.1
1.1.2
1.1.3
1.1.4
1.1.5

2-FMT APIS Azimuth Guidance – Cockpit View.

3- Pilot Instructions

OBBI AD 2.24 CHARTS RELATED TO AN AERODROME

Chart name	Page
AERODROME/HELIPORT CHART	AD 2-OBBI-26
AERODROME GROUND MOVEMENT CHART	AD 2-OBBI-28
AIRCRAFT PARKING DOCKING CHART MAIN APRON A	AD 2-OBBI-30
AIRCRAFT PARKING DOCKING CHART MAIN APRON B	AD 2-OBBI-32
AIRCRAFT PARKING DOCKING CHART MIDDLE AND CARGO APRONS	AD 2-OBBI-34
AIRCRAFT PARKING DOCKING CHART EXECUTIVE AND CARGO APRON	AD 2-OBBI-36
AIRCRAFT PARKING DOCKING CHART WESTERN APRONS A & B, AND CARGO & EXECUTIVE APRONS	AD 2-OBBI-38
AIRCRAFT PARKING DOCKING CHART NORTHERN APRON	AD 2-OBBI-40
AIRCRAFT PARKING DOCKING CHART EASTERN APRON	AD 2-OBBI-42
AIRCRAFT PARKING DOCKING CHART EASTERN APRON EXTENSION	AD 2-OBBI-44
AERODROME OBSTACLE CHART RWY 12L / 30R	AD 2-OBBI-46
AERODROME OBSTACLE CHART RWY 12R / 30L	AD 2-OBBI-48
PRECISION APPROACH TERRAIN CHART - ICAO RWY 30R	AD 2-OBBI-50
PRECISION APPROACH TERRAIN CHART - ICAO RWY 12L	AD 2-OBBI-52
AREA CHART BAHRAIN	AD 2-OBBI-54
DEPARTURE CHART (RADAR) RWY 12L	AD 2-OBBI-56
DEPARTURE CHART (RADAR) RWY 30R	AD 2-OBBI-58
CIRCLING AUTHORIZATION AREA	AD 2-OBBI-60
IAC - ICAO RWY 12L VOR DME ILS CAT A-D	AD 2-OBBI-62
IAC - ICAO RWY 12L VOR DME CAT A-D (L)	AD 2-OBBI-64
IAC - ICAO RWY 12L VOR CAT A-D (L)	AD 2-OBBI-66
IAC - ICAO RWY 12R RNAV (GNSS) CAT A-D(L)	AD 2-OBBI-68
IAC - ICAO RWY 12L RNAV GNSS CAT A-D (L)	AD 2-OBBI-70
IAC - ICAO RWY 12R VOR DME CAT A-D (L)	AD 2-OBBI-72
IAC- ICAO RWY 30L VOR DME CAT A-D (L)	AD 2-OBBI-74
IAC - ICAO RWY 30R VOR DME ILS CAT A-D	AD 2-OBBI-76
IAC - ICAO RWY 30R VOR DME CAT A-D (L)	AD 2-OBBI-78
IAC - ICAO RWY 30R VOR CAT A-D (L	AD 2-OBBI-80
IAC - ICAO RWY 30R RNAV GNSS CAT A-D (L)	AD 2-OBBI-82
IAC - ICAO RWY 30L RNAV (GNSS) CAT A-D(L)	AD 2-OBBI-84
VISUAL APPROACH CHART - ICAO	AD 2-OBBI-86
BIRD CONCENTRATIONS	AD 2-OBBI-88
RADAR MINIMUM ALTITUDE CHART	AD 2-OBBI-90
STAR CHART - ICAO RWY 12L/30R RNAV1 - RADIO COMMUNICATION FAILURE STAR	AD 2-OBBI-92
STAR CHART - ICAO RWY 12L/30R RNAV1 - DENVO 1 ARRIVAL	AD 2-OBBI-94
STAR CHART - ICAO RWY 12L/30R RNAV1 - KOBOK 1 ARRIVAL	AD 2-OBBI-96
STAR CHART - ICAO RWY 12L/30R RNAV1 - LADNA 1 ARRIVAL	AD 2-OBBI-98
STAR CHART - ICAO RWY 12L/30R RNAV1 - SOGAT 1 ARRIVAL	AD 2-OBBI-100
LOW VISIBILITY PROCEDURE - DEPARTURE RWY 12L-30R	AD 2-OBBI-102
LOW VISIBILITY PROCEDURE - ARRIVAL RWY 12L - 30R	AD 2-OBBI-104
